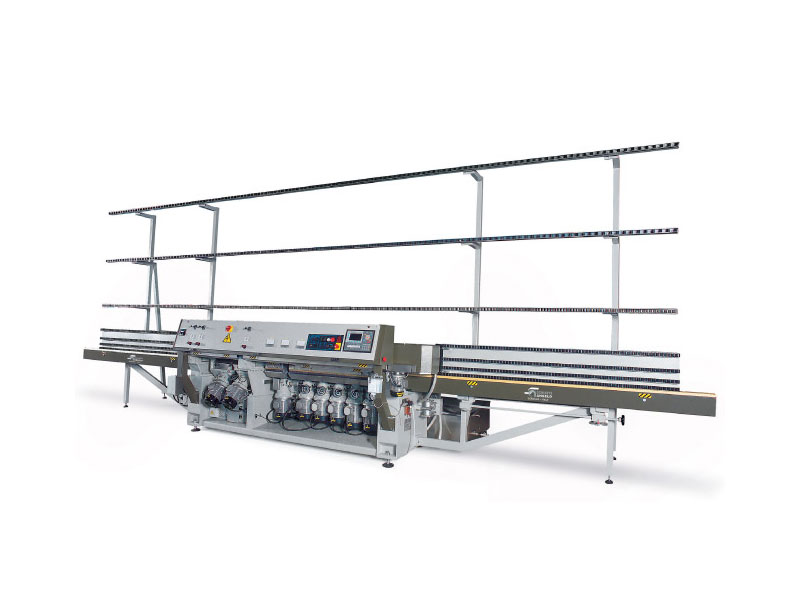

SERIES SME 3/30 mm*

Straight grinding machine for the processing of flat edge and arris – mitering from 0° to 45° – cerium oxide polishing on the edge and chamfer (except mod. SME8)

Especially suitable to medium/big glass companies for the production of mirrors, shelves for furniture, laminated glasses, glass tables and stairs.

•  Conveyor-track composed of rubber pads with six bearings, fixed to a chain that glide along steel guides
•  The conveyor doesn’t require continuous lubrication
•  PLC touch screen to adjust thickness, working speed, mitering system, to input and display all the working parameters and diagnosis of faults
•  Independent adjustment of the diamond wheels
•  Automatic adjustment of the polishing wheels
•  Double speed motors for the polishing wheels
•  Possibility to work both with liquid and synthetic cerium oxide
•  At the inlet of the machine a device allows the operator to increase or decrease the glass removal up to 4mm without the need to adjust the diamond wheels
•  Close–circuit water cooling system
•  Protection and safety devices to protect the operator
•  Electrical system in compliance to the EC in force
