BWPL

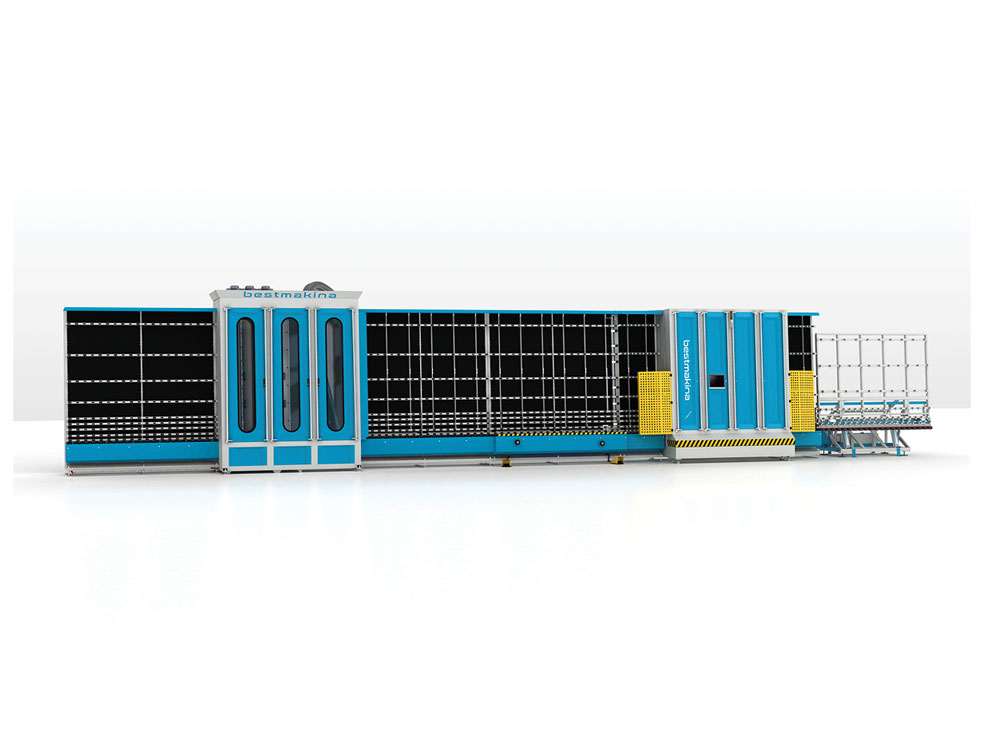

Automatic Washing and Combining Line with Servo Panels Press

It is used for washing, drying glasses, automatic assembling and pressing with servo system.

 Welded rigid body made of A304 stainles steel and HRP quality steel

• Staple type , vibration free brushes for ɛ =0.01 quality Low-E glasses
• Stainless steel water tank with a capacity of 450 liters
• Inlet-outlet filters for water pumps
• Low energy consumption
• Lubrication free bearing system for brushes and conveyors
• Ability of rinsing and drying without touching the glass
• Stainless water filters
• Ability of manufacturing triple glasses and stepped IG units
• Thickness precision and high assembling speed with movement of 3 individual auto servo motor driven axes
• Ability of assembling IG units which are wider than the press unit with high vacuum capacity
• Control of the whole line from user friendly animated HMI unit
• Ability of working manually and control of all functions
• Lubrication free bearing system for brushes and conveyors
• Consumable materials are resistant against wearing
• Maximum offset up to 70mm
• • 150kg/m loading capacity

• Automatic pressure setting for different glass sizes
• Special design for conveyor wheels to more heavy glasses
• Brush shafts are balanced against vibration
• Individual spindles for each brushes
• Self adjustment system for glass thickness (max
